  1. HMI Designer
  2. Design Steps

Create new HMI Panel

PreviousDesign StepsNextAdd HMI Components

Last updated 2 years ago

Create a new HMI Panel File to start develop a custom panel with Robpod .

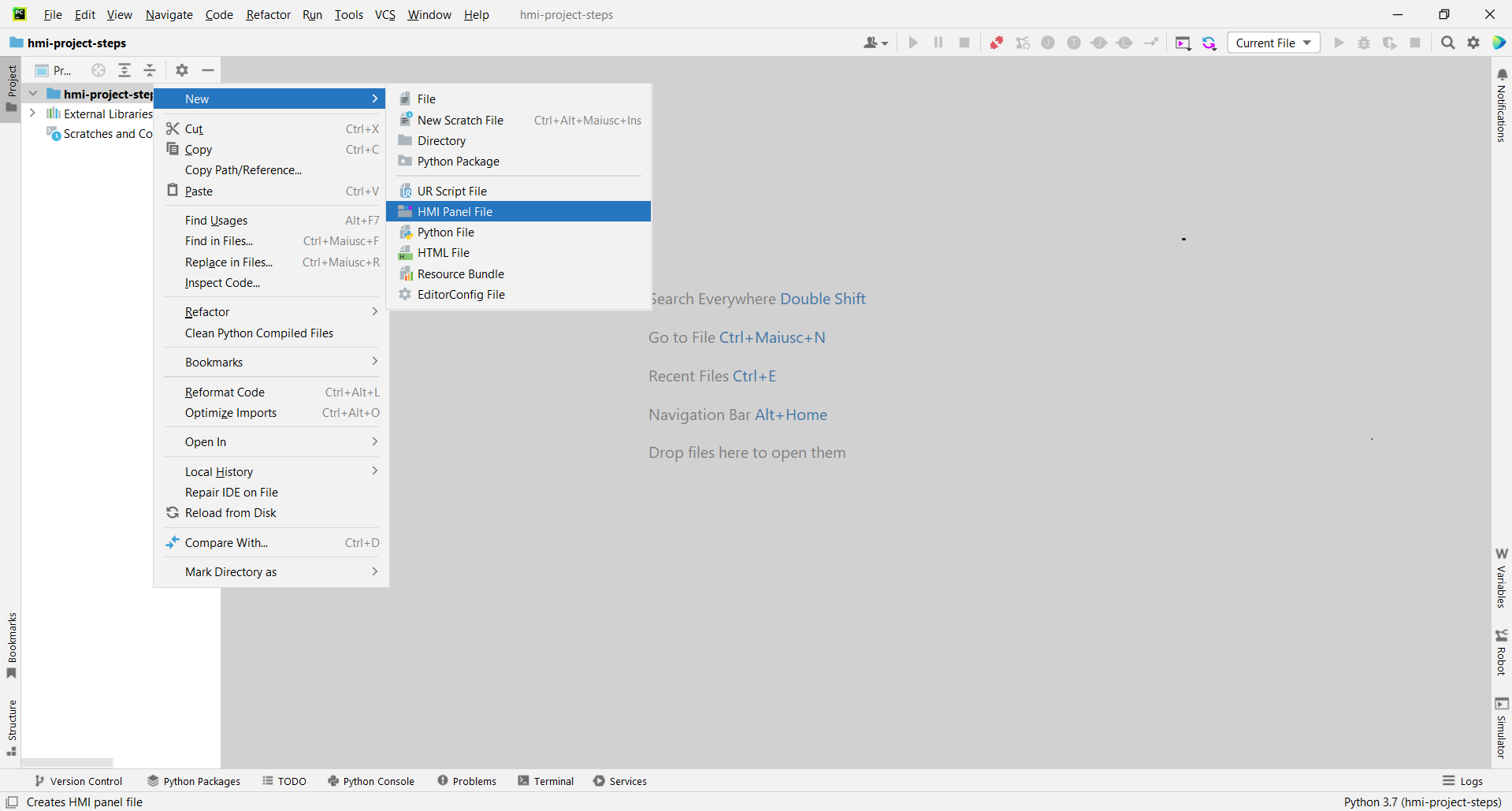

  1. Right-click on project folder and select New -> HMI Panel File.

  2. Choose a file name for the panel, and the HMI Designer Editor will apear.

  3. Click on the HMI panel top bar to start editing the panel UI properties.

  4. Using the side tool window you can add Title and Logo to the HMI panel.

  5. You can use the side tool window also to change the HMI panel size in order to fit the resolution with the screen of the robot teach pendant you will be using.

  6. You can also change the color settings for top and footer bar.

HMI Designer
