Control the Robot

PreviousConnect the RobotNextGet Positions

Last updated 2 months ago

Once , you can take control of the robot inside Robpod Studio using the Reload Robot icon. This opeation will:

  • Clear robot allarms that do not requires manual intervention

  • Give power to the robot

  • Disengage robot breaks

Many robots require to acquire an operational grant before allowing to perform control actions. Check following guide with specific instructions for each supported robot brand.

Universal Robot e-series requires to obtain an operational grant before controlling the robot.

  1. the robot.

  2. On robot teach pendant, go to Settings -> System -> Remote Control and enable remote control.

  3. When you want to control the robot from Robpod Studio switch to remote control mode using / icon.

  4. Click on Reload Robot to power it on.

Universal Robot CB series do not require to obtain an operational grant.

Doosan Robotics cobots require to obtain an operational grant before controlling the robot.

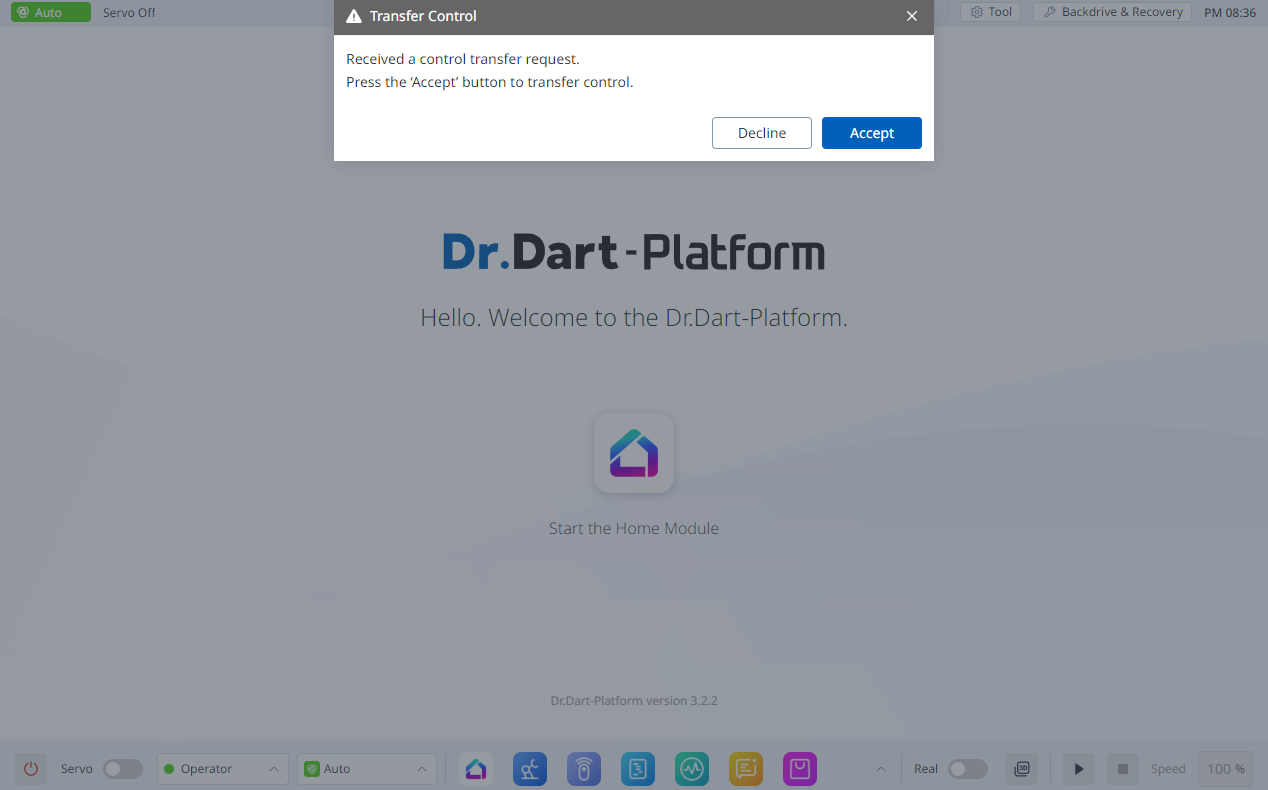

  1. On robot teach pendant click on Accept to transfer robot control.

This will turn on robot servos and give robot control to Robpod Studio.

You can take control of the robot simply clicking on the Reload Robot icon.

the robot.

Click on Reset Robot to ask for robot control.
